EDC15 ECU Remapping Course with WinOLS (Alfa Romeo)

EDC15 ECU Remapping Tutorial with WinOLS – Alfa Romeo Diesel Edition

Master the science of diesel tuning with this in-depth EDC15 ECU remapping session using WinOLS—specially designed for Alfa Romeo diesel engines. In this professional-level episode from our ECU tuning course, we focus on advanced remapping strategies using WinOLS, one of the most powerful tools for diesel ECU calibration. Whether you're a newcomer to the world of remap or a seasoned chip tuner, this episode will boost your understanding of EDC15 map structures, calibration methods, and performance optimization with engineering precision.

1. Introduction to the EDC15 ECU System

The EDC15 ECU (Electronic Diesel Control generation 15) is a robust and highly tunable control unit found in many early-2000s Alfa Romeo diesel vehicles. It governs key engine functions such as injection timing, turbo pressure, torque management, and smoke limitation. This ECU uses a MAP-based control architecture, making it an ideal platform for advanced ECU tuning and custom modifications.

 2. How to Load and Access EDC15 Maps in WinOLS

Unlike other tuning tools, WinOLS allows full access to raw binary files and in-depth map manipulation. In this section, we demonstrate:

• How to import the original EDC15 ECU file (binary/hex format)
• Use of checksum correction and project configuration
• How to visually identify potential map areas using WinOLS’s map detection algorithms
• How to use 2D, 3D, and hex views to examine calibration zones

This module is essential for anyone aiming to perform WinOLS diesel ECU remapping with technical accuracy and confidence.

NEW: How to Identify EDC15 Maps in WinOLS & Access Map Packs

One of the most crucial skills in using WinOLS is learning to manually detect calibration tables. In this bonus section, we teach you how to:

• Use statistical pattern recognition to locate torque, boost, and injection maps
• Recognize map axis patterns and data scaling
• Differentiate between similar-looking maps (e.g. requested vs. delivered torque)

After purchasing this training, you’ll also get access to our custom EDC15 map pack for Alfa Romeo diesel ECUs, allowing you to save time and avoid guesswork when tuning. This bonus includes pre-identified maps for torque request, SOI, boost control, limiter tables, and more—fully compatible with WinOLS.

3. Key EDC15 Maps Explained – Injection, Torque, Rail, Boost & Air Control

Each calibration table (map) in the EDC15 ECU plays a vital role in engine behavior:

• Injection Quantity Maps – define how much fuel is injected per cycle based on RPM/load
• Torque Maps – link pedal request to actual engine torque output
• Boost Control Maps – manage turbo pressure targets for optimal AFR
• Rail Pressure Maps – control the high-pressure fuel system for injection precision
• Smoke Limiter and Air Control Maps – ensure safe air-fuel mixing and avoid excessive smoke

We explain each map’s purpose, axis structure (RPM, mg/stroke, bar), and the correct units/scaling factors needed for precise diesel tuning.

 4. Which Maps Matter Most for Effective Diesel Remapping

Efficient remapping focuses only on maps that directly influence performance, efficiency, or engine responsiveness. In this lesson, we emphasize high-impact maps such as:

• Driver Wish / Pedal Request
• Start of Injection (SOI)
• Injection Duration
• Boost Control
• Torque and Smoke Limiters

We also explain how to safely raise values while maintaining engine reliability, and how remap tuning of these maps enhances driving dynamics.

5. Performance Outcomes of EDC15 ECU Tuning

Modifying the above maps leads to tangible gains in power and drivability:

• Longer injection duration = increased torque output
• Higher boost pressure = better combustion and turbo efficiency
• Adjusted torque limiters = full engine potential without ECU restrictions

We provide before-and-after data examples showing increased Nm and horsepower from real tuning projects.

 6. Scientific Tuning – Real Equations for Safe & Efficient ECU Calibration

Unlike "trial and error" methods, we teach you how to calculate map values based on real-world engineering formulas:

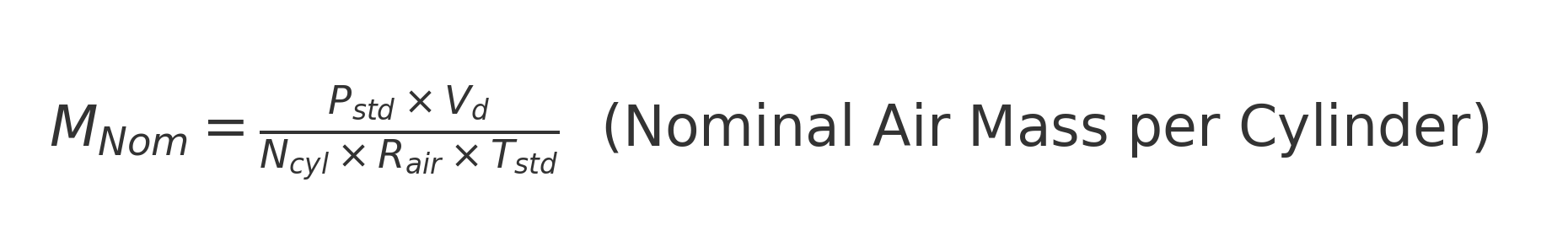

• Nominal Air Mass per Cylinder = f(RPM, MAF, VE)

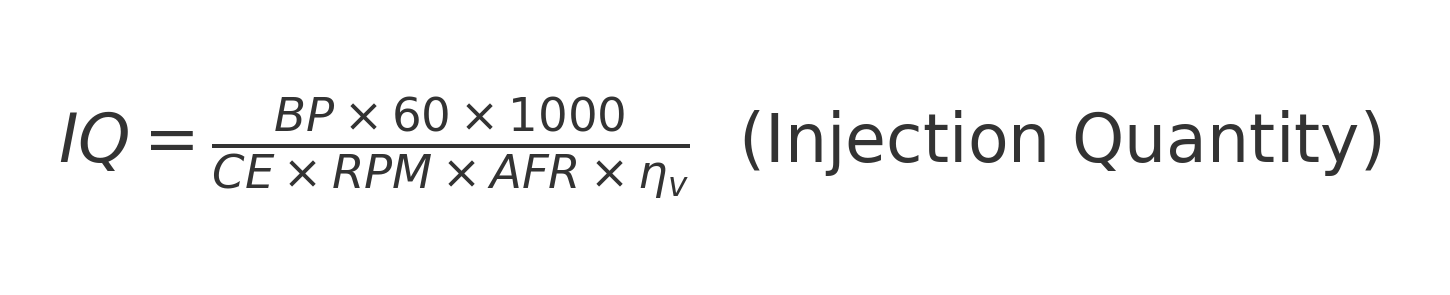

• Diesel Injection Quantity = based on Brake Power, diesel calorific value, and volumetric efficiency

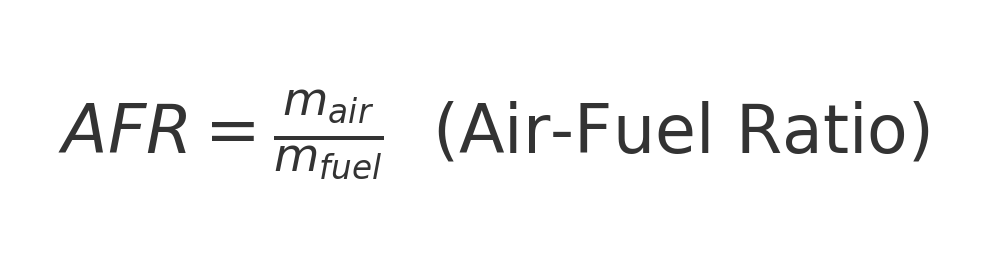

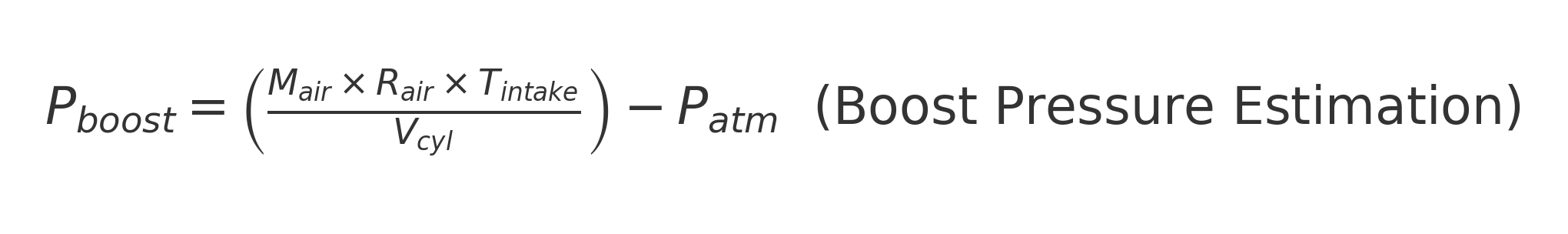

• Boost Estimation for Target AFR = for smoke-free combustion

• Rail Pressure Requirements = based on injector flow rates and desired fuel quantity

By applying these calculations, you'll tune like an OEM calibration engineer—delivering safe, efficient, and optimized performance. This approach is foundational to professional ecu tuning with WinOLS.

 Become a Certified Diesel Remapping Expert – Enroll Now

This course is more than a video tutorial—it's a complete EDC15 ECU remapping training solution for those looking to enter the world of diesel tuning professionally. Mastering WinOLS diesel ECU remapping will allow you to build your own tuning profiles, service clients, or improve your own vehicle performance with confidence.
