In this episode of our Diesel ECU Tuning Course using ECM Titanium, we explore a crucial foundational topic for torque-based calibration:
How to calculate the nominal air mass entering each cylinder—an essential step in determining accurate engine torque.

šŸ’” Why This Calculation Matters in ECU Tuning:

Modern diesel ECUs rely on accurate air mass estimation to calculate the torque output. The amount of air entering the cylinder directly determines how much fuel can be injected while maintaining ideal combustion. This is critical for:

  • Achieving optimal air-fuel ratios (AFR)
  • Avoiding excessive smoke production
  • Ensuring efficient turbo control
  • Maintaining emissions compliance
  • Safely increasing engine power and torque

This air mass calculation is not just a theory — it underpins real-world tables like Driver’s Wish, Torque Limiter, Smoke Limiter, and Injection Quantity. Without this calculation, your tuning changes are guesswork at best.

šŸ“ Understanding the Formula:

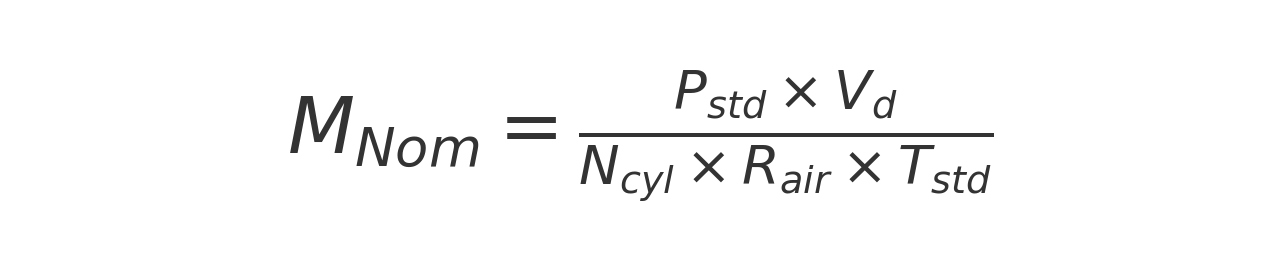

The nominal mass of air per cylinder is calculated using the following formula:

Calculate Nominal Air Mass for Diesel ECU Tuning

Where:

  • MNom​ = Nominal mass of air per cylinder
  • Pstd​ = Standard atmospheric pressure (typically 101.325 kPa)
  • Vd = Engine displacement (in cubic centimeters or liters)
  • Ncyl​ = Number of engine cylinders
  • Rair​ = Specific gas constant for air (typically 287.05 J/kgĀ·K)
  • Tstd = Standard temperature in Kelvin (typically 288.15 K)

This formula provides the theoretical baseline amount of air that enters one cylinder per intake stroke under standard environmental conditions. It is critical in torque-based ECU tuning, as many calculations for fuel delivery and torque management are built upon this value.

šŸ”— How This Links to Torque-Based ECUs

In torque-based ECUs, everything begins with a torque request — either from the driver’s pedal or an automatic control system (like cruise control, traction control, etc.). The ECU uses internal logic to determine how much fuel to inject based on:

  • Requested torque
  • Air mass (calculated or measured)
  • Efficiency and torque maps

If the nominal air mass is wrongly estimated, all torque predictions and fuel delivery calculations become inaccurate, leading to poor performance, high emissions, or even engine damage.

That’s why ECUs often use this exact formula internally for predictive modeling and diagnostics — and why you, as a tuner, must understand and apply it.


šŸŽ“ Why You Must Master This

This knowledge separates professional calibrators from hobby-level tuners. Anyone can drag map values up and down — but understanding why those values exist and how they interact with physical engine limits allows you to:

  • Build tuning strategies from first principles
  • Modify torque limiters safely and effectively
  • Optimize smoke control without power loss
  • Reverse-engineer OEM logic to improve it
  • Tune for different altitudes or environmental conditions

If you're tuning without this knowledge, you're simply guessing. With it, you're engineering.


āœ… Bonus Insight: Nominal vs. Actual Air Mass

This episode focuses on nominal air mass — a theoretical baseline. In real-time ECU operation, the actual air mass may differ due to turbo boost, ambient conditions, EGR activity, or intake restrictions. However, many ECUs still rely on nominal air mass as a reference value in their internal torque modeling and diagnostics.

By mastering this calculation, you not only understand the static behavior of the engine but can also calibrate dynamic compensation strategies accurately.


šŸš€ Ready to Tune Like a Pro?

If you're ready to move beyond guesswork and into the world of precision diesel tuning, this course is your launchpad. Learn how to calculate, interpret, and apply engine physics using ECM Titanium like a true professional.

šŸ”— Enroll now and unlock the science behind real performance tuning.





FAQs:

Nominal air mass is the theoretical mass of air entering a cylinder under standard temperature and pressure, used for torque and fuel calculations.

Accurate air mass allows you to adjust fuel injection, torque limiters, and smoke control maps precisely using ECM Titanium software.

It sets the foundation for torque prediction, influencing IQ maps and engine power output in torque-based ECU strategies.
