Injection Quantity (IQ) Calculation in Diesel Engines for ECU Tuning
🔧 Introduction: Why Injection Quantity Matters in Diesel Tuning
In diesel ECU tuning, Injection Quantity (IQ) is one of the core parameters that directly influences engine torque, power output, fuel economy, smoke generation, and exhaust gas temperature (EGT). This episode will walk you through the theoretical and formula-based calculation of IQ based on air-fuel ratio (AFR), lambda, and its effect on torque output.
🧩 What Is Injection Quantity?
Injection Quantity refers to the amount of fuel injected into a single cylinder during each power stroke. It is commonly represented in:
- mg/stk (milligrams per stroke), or
- mm³/stk (cubic millimeters per stroke)
These values are crucial for precise tuning of diesel engines using tools like ECM Titanium.
🔹 Step-by-Step: How to Calculate Diesel Injection Quantity
1. Calculate Instantaneous AFR (Air-Fuel Ratio)
Where:
- λ<sub>ist</sub> = Instantaneous lambda value (from ECU data)
- AFR<sub>stoich</sub> = Stoichiometric AFR for diesel (typically ≈ 14.5)

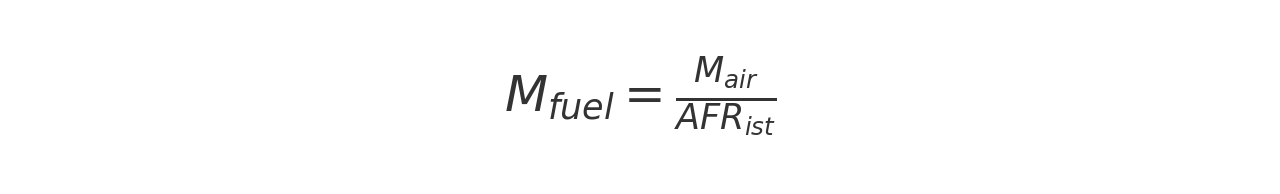

2. Determine Fuel Mass from Air Mass
Where:
- M<sub>air</sub> = Mass of intake air [mg]
- M<sub>fuel</sub> = Resulting mass of fuel [mg] to be injected

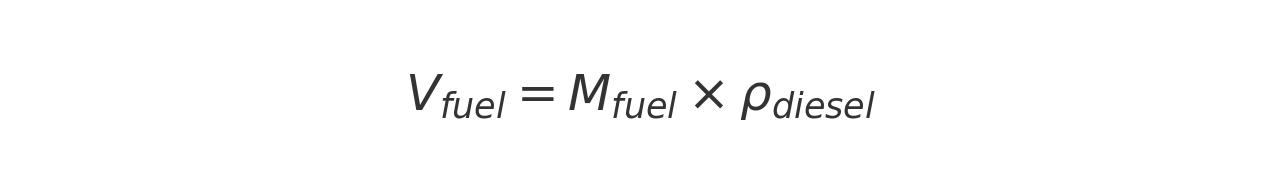

3. Convert Fuel Mass to Fuel Volume
Where:
- ρ<sub>diesel</sub> = Specific volume of diesel (typically ≈ 1.1976 mm³/mg)
- V<sub>fuel</sub> = Fuel volume per stroke [mm³/stk]

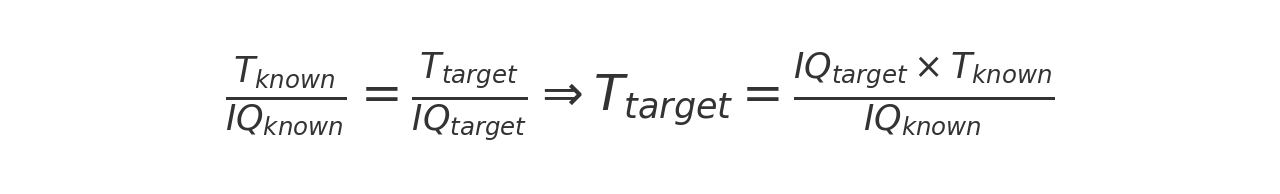

4. Estimate Torque from Injection Quantity
Where:
- T = Torque [Nm]
- IQ = Injection Quantity [mm³ or mg/stk]
🔹 5. Understanding Torque Axes in IQ-Based Maps (Advanced Version)
In many diesel ECU calibration strategies, torque-related maps—such as the Torque Limiter, Driver’s Wish, and Smoke Limiter—use the requested engine torque (Tᵣₑq) as the reference on the X-axis, with RPM (n) on the Y-axis, and the output values being Injection Quantity (IQ) in mg/stk or mm³/stk.
Since torque in an internal combustion engine is a function of the energy released during combustion, and energy is directly proportional to the mass of fuel injected, we can express:
T_engine ∝ m_fuel × Q_LHV
Where:
- T_engine = Brake Torque [Nm]
- m_fuel = Fuel mass injected per stroke [mg]
- Q_LHV = Lower Heating Value of diesel ≈ 42.5 MJ/kg
Thus, a simplified proportional relationship between injection quantity and torque can be written as:
T ≈ k × IQ
Where:
- T = Engine Torque [Nm]
- IQ = Injection Quantity [mg/stk]
- k = Calibration coefficient (determined empirically based on engine efficiency and mechanical losses)
Map Logic:
- For a given RPM, the ECU uses the torque request to look up the required fuel injection quantity.
- Conversely, by adjusting IQ values in the Z-axis of the maps, the tuner effectively modifies the torque output delivered by the engine.
This is why understanding the quantitative relationship between IQ and torque is essential for accurate remapping. Overestimation can lead to over-fueling, high EGT, or component damage, while underestimation may reduce engine response and power delivery.
💻 Diesel ECM Titanium Injection Quantity Tables
In the ECM Titanium software, IQ maps typically appear as 3D tables where:
- X-Axis: Engine Speed (RPM)
- Y-Axis: Requested Torque or Engine Load
- Z-Axis: Injection Quantity (mg/stk or mm³/stk)
These maps help visualize how the ECU increases fuel delivery based on the engine’s demand. A tuner must carefully modify these tables in correlation with air intake, boost pressure, and lambda to maintain a safe AFR and avoid excessive soot, EGT, or DPF loading. Injection quantity maps work in tandem with Smoke Limiters, Torque Limiters, and Driver’s Wish maps to define overall fuel strategy.
🔎 Smoke Limitation and Air-Fuel Safety
Smoke maps are designed to prevent over-fueling by calculating the maximum fuel quantity the engine can burn cleanly, based on the available air and target lambda. Here's a sample smoke limiter calculation table:
Lambda | AFR | Max Fuel (mg) | Fuel Volume (mm³) | Estimated Safe Torque (Nm) |
---|---|---|---|---|
1.280 | 18.56 | 53.87 mg | 64.51 mm³ | ~387 Nm |
1.100 | 15.95 | 62.70 mg | 75.08 mm³ | ~450 Nm |
1.000 | 14.50 | 68.96 mg | 82.53 mm³ | ~500 Nm |
⚠️ Warning: Operating below lambda = 1.0 significantly increases smoke, raises EGT, and reduces engine life. Always tune within the safe lambda threshold for optimal torque and reliability.
💡 Why These Calculations Matter in ECU Tuning
In performance ECU tuning, accurate fuel delivery is the cornerstone of safe power optimization. Calculations related to injection quantity—such as fuel mass in mg/stk, volume in mm³/stk, and their relation to torque—are essential because they allow the tuner to estimate exactly how much fuel enters the cylinder at any given engine load and RPM. Without this precision, adjustments become guesswork, which can lead to excessive smoke, increased EGT, reduced engine life, or even catastrophic failure. Correct injection mapping ensures that air-fuel ratios remain within optimal and safe limits for both power and emission standards.
🎯 Why a Professional Tuner Must Understand These Calculations
For anyone aiming to create a truly professional and efficient ECU remap, mastering these calculations is non-negotiable. It's not just about increasing injection quantities arbitrarily—it’s about understanding the physics behind fuel delivery and combustion. A tuner must be able to calculate the stoichiometric AFR, actual AFR, and convert that into allowable fuel mass based on the incoming air. Only by doing so can one correctly populate or modify maps like Torque Limiter, Smoke Limiter, and Injection Quantity. These maps must correlate scientifically to avoid engine knocking, DPF saturation, and poor driveability. Knowledge equals control—and in ECU tuning, control is everything.
FAQs:
1: What is injection quantity in ECU tuning?
Injection quantity refers to the precise amount of fuel injected per engine stroke, measured in mg/stk or mm³/stk, directly affecting torque output.
2:Why is torque proportional to injection quantity?
Torque is derived from combustion energy, which depends on the fuel mass and its heating value. More injected fuel generally yields more torque, within safe limits.
