Renault AdBlue OFF Service / Renault Truck SCR Removal Software

Introduction
In Renault trucks, the AdBlue (SCR) system reduces emissions but can cause high maintenance costs and failures. Many owners opt for AdBlue OFF via ECU remapping. This guide covers the process, benefits, and compatible models.

---

Renault Truck ECU Programming Process for AdBlue Deactivation:



For Renault trucks, the AdBlue OFF procedure involves the following steps:
1.    Reading the ECU Data
2.    Modifying the Software
3.    Flashing the ECU
4.    Testing and Verification



---

What is ACM and is it necessary to modify the ACM for AdBlue OFF For Renault trucks ?

Renault trucks use an  ACM ( Aftertreatment Control Module) unit alongside the ECU to control the SCR system. The ACM in Renault trucks paired with the TRW EMS 2.x is Continental. However, there is no need to modify the ACM; AdBlue can be disabled solely by remapping the ECU.

---

How to Read and Write TRW EMS ?

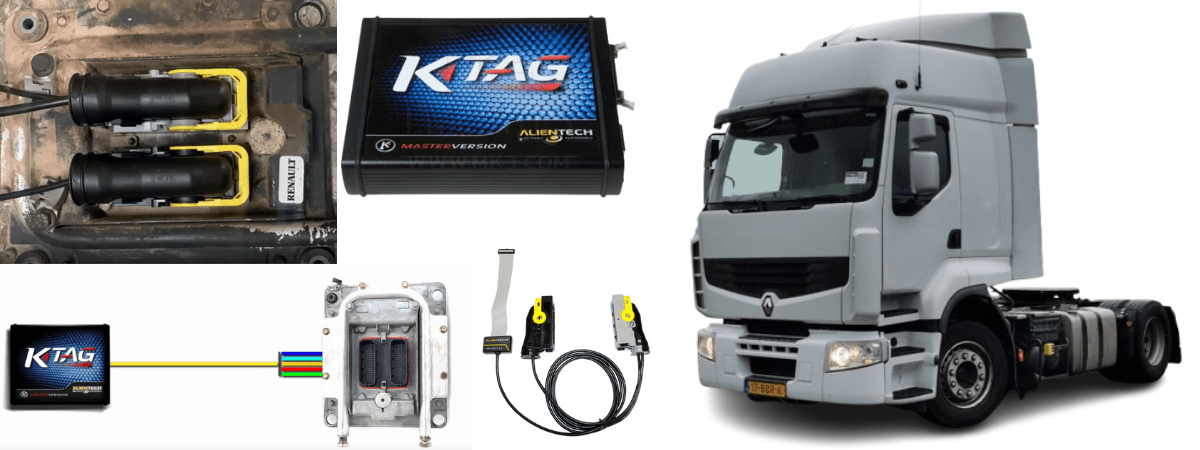

We use KTAG master for the read and write process of this ECU. Select Renault truck, Euro 5, DTi11, and then choose service mode. In service mode, the ECU can be read from its pinout (Bench mode).
1.    A 144300T115 cable is required to connect to the ECU, along with 144300TALI as the battery supply power cable.
2.    Disconnect the ECU connector and attach the 144300T115 cable to the ECU.
3.    The ECU can also be removed and read on a workbench. Once connected to the KTAG tool, the system should identify it automatically.
4.    Use the Read Backup function to save the original file before proceeding with modifications.



Note: The KTAG can correct the checksum for this ECU during the Writing process so you don’t need to worry about checksum correction.

---

How to AdBlue OFF TRW ECM in WinOLS software ?

Once the original ECU file is opened in WinOLS, specific areas must be modified. Unlike general ECU remapping (e.g., DPF OFF, EGR OFF, DTC OFF), AdBlue OFF solutions vary across different ECU versions. To successfully disable AdBlue, use original A2L/Damos files to locate values within WinOLS.
For a step-by-step guide on Renault AdBlue OFF, join our training course, where we cover AdBlue system deletion using Swiftec and WinOLS.

---

Renault Trucks AdBlue OFF Online File Service

By reading the original ECU file using tools like KESS3, KTAG, and following the instructions above, you can submit the file to our Tuning File Service. Our technicians will provide a remapped file within 10 minutes, ensuring no limp mode or error codes.

click here for Download Volvo AdBlue OFF file service

---

Download AdBlue OFF File for Renault

If you have a programmer like KTAG and need AdBlue OFF but lack WinOLS experience, our Schiller Tuning File Service provides professional remapped files, including AdBlue OFF, DPF OFF, EGR OFF, DTC OFF, and full ECU calibration for performance and fuel efficiency.

All you need to do is upload your original ECU file and get the remapped file in the shortest time.

---

Compatible Renault Trucks for AdBlue Delete

The Renualt AdBlue OFF solution has been successfully tested on various truck models equipped with TRW EMS 2.2, 2.3, and 2.4 ECUs. Below are some of the supported models:

Brand Name, Type	Engine	ECU Installed
Renault Midlum 2018+ (EURO-6)	7.8TDI DTi8 210-280hp	TRW EMS2.4 and ACM
Premium 2018+ (EURO-6)	12.8TDI DTi13 440-520HP	TRW EMS2.4 and ACM
Premium 2018+ (EURO-6)	10.8TDI DTi11 380-460HP	TRW EMS2.4 and ACM
T (EURO-6)	DTI13	TRW EMS2.3/2.4 and ACM
Magnum (EURO-6)	AE 440 DXi12 - AE 520 DXi13	TRW EMS2.3/2.4 and ACM
Midlum 2014-16 (EURO-6)	7.8TDI DTi8 210-280hp	TRW EMS2.3/2.4 and ACM
Kerax (EURO-6)	370 DXi11 - 480 DXi13	TRW EMS2.3/2.4 and ACM
Premium 2011-16 (EURO-6)	12.8TDI DTi13 440-520HP	TRW EMS2.3 and ACM
Premium 2014-16	10.8TDI DTi11 380-460HP	TRW EMS2.3 and ACM
Magnum (Euro 5)	AE 440 DXi12 - AE 520 DXi13	TRW EMS2.2
Premium (Euro 5)	460270 DXi7 - DXi13	TRW EMS2.2
Kerax (Euro 5)	370 DXi11 - 480 DXi13	TRW EMS2.2
Midlum (Euro 5)	160 DXi5 - 300 DXi7	TRW EMS2.2

---

What are the differences between TRW EMS versions in Renault trucks?

EMS Version	Emission Standard	Used In	Key Differences
EMS2.0	Euro 3 / Early Euro 4	Older Renault	Basic engine control, no AdBlue (SCR) support
EMS2.2	Euro 4 / Euro 5	Renault Premium/Kerax	Introduced SCR (AdBlue) & ACM support
EMS2.3	Euro 6	Renault T/ K series	Improved NOx control, DPF management, more sensors
EMS2.4	Euro 6 (Latest Gen)	Renault T	More efficient AdBlue injection, better diagnostics

In terms of appearance differences, they look alike with a little bit of changes such as size, fins, connectors, and some have plastic caps.

---

Benefits of Disabling the AdBlue System for trukcs

Renault truck owners who deactivate AdBlue experience:
•    Lower Operating Costs – No more AdBlue fluid expenses.
•    Reduced Downtime – Avoids engine derate issues caused by SCR faults.
•    Better Fuel Efficiency – Some trucks perform better without AdBlue restrictions.
•    Higher Reliability – Eliminates SCR-related faults.
•    Optimized Performance – Ideal for extreme climates where AdBlue issues occur.

---

Is AdBlue Deactivation Legal for Renault trucks?

Disabling AdBlue may violate emissions regulations in many countries. This modification is recommended only for off-road or export vehicles. Owners should check local laws before proceeding with AdBlue OFF solutions.

---

Conclusion
ECU remapping for AdBlue deactivation is a practical solution for Renault trucks with frequent SCR system issues. By modifying the ECU software, truck owners can eliminate AdBlue while maintaining optimal performance. However, legal considerations should be taken into account before proceeding.
For professional Renault AdBlue OFF tuning and ECU remapping, contact our expert technicians today!

---
