1. Introduction to Torque-Based ECU Strategy
Modern internal combustion engines are complex mechatronic systems where electronics, sensors, and actuators must work in perfect harmony to deliver performance, fuel efficiency, and compliance with strict emissions regulations. also you know in new engine NVH ( noise-vibration- harness) is very important. At the heart of this system lies the Engine Control Unit (ECU). Over the years, ECU strategies have evolved from simple mechanical or throttle based approaches to highly sophisticated torque based ECU strategies. that Bosch company foundation this system. In this architecture, torque is treated as the central variable that coordinates all engine and powertrain functions.
What is Torque-Based ECU?
In simple terms, torque based ECU strategies translate every driver input (via the accelerator pedal) and every subsystem demand (air conditioning, transmission, traction control, and any external torque demand.) into a desired torque request. This request is then realized through coordinated control of engine actuators such as the throttle, fuel injectors, and ignition system and turbo. This article provides a deep dive into how torque based ECU strategies work, their architecture, the algorithms behind them, and their importance for modern automotive performance and tuning.
2. Why Torque Matters in ECU Design
Torque is the rotational force that an engine generates at the crankshaft, and it is the most direct measure of how an engine changed fuel and air pressure into usable power. Unlike older throttle based systems that used throttle angle as the main control variable, torque provides a physically meaningful and universal parameter that can be shared between the ECU and other vehicle control systems (transmission, ABS, ESP and modern control system like luanch contril for best tracction ).
The general torque balance can be expressed as:
[T_{engine} = T_{combustion} - T_{losses}]
Where:
- T_engine is the net torque delivered to the crankshaft,
- T_combustion is the torque generated by combustion inside the cylinders,
- T_losses includes friction losses, pumping losses, and power consumed by accessories.
By placing torque at the center of ECU calculations, engineers ensure that all subsystems speak a common “language.” This leads to smoother drivability, better coordination of power demands, and more precise control of emissions.
3. Driver Torque Demand and Pedal Mapping
The most visible interface between the driver and the ECU is the accelerator pedal. In torque based ECUs, the pedal position is not directly connected to the throttle plate ( we so to speak drive by wire ) , as it was in older mechanical systems. Instead, the pedal acts as an input to the ECU, which interprets it as a torque demand.

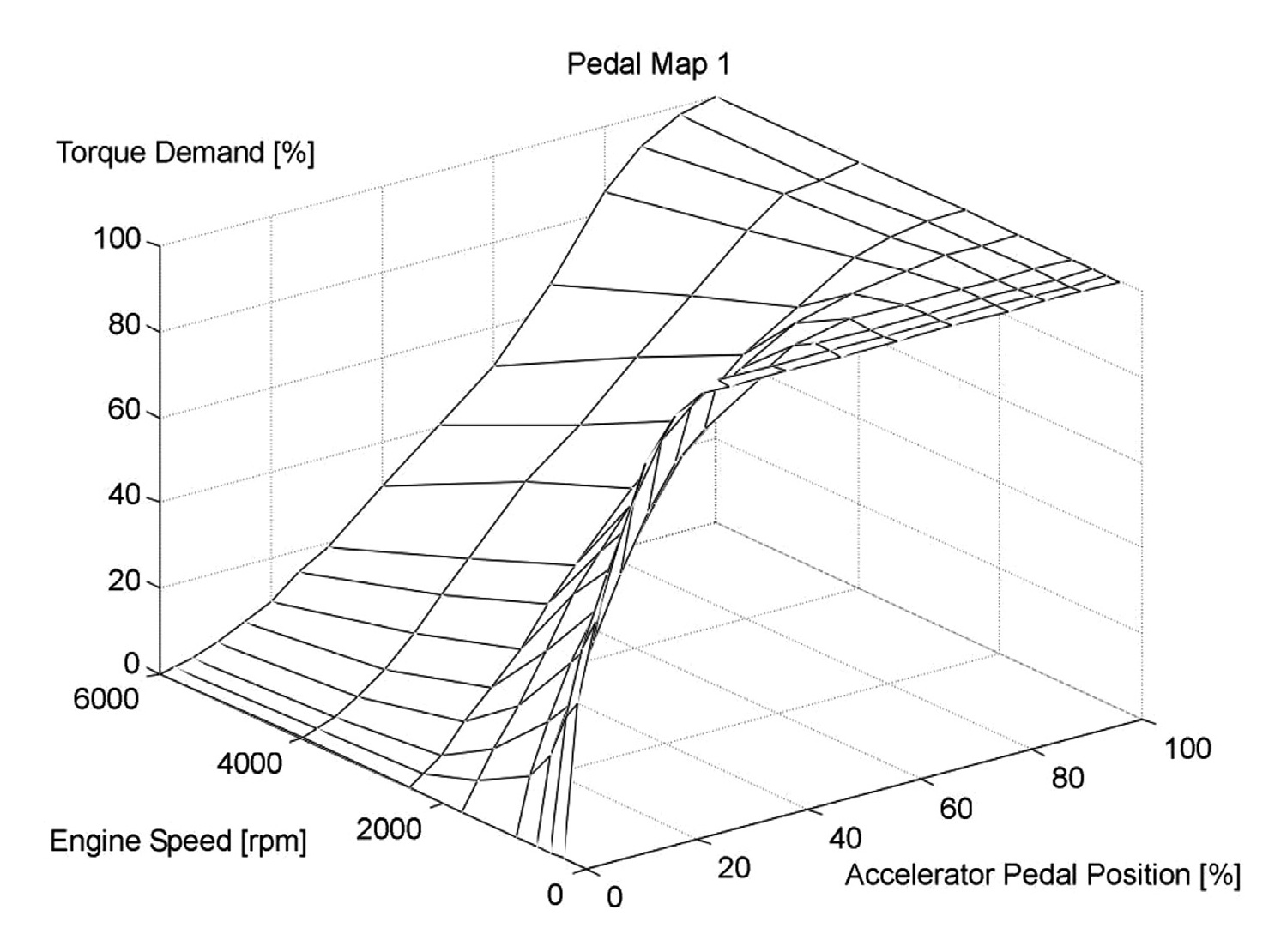

This translation is accomplished through pedal maps and is famous (Driver wish MAP) A pedal map is a lookup table that correlates pedal position and engine speed with a target torque value (percentage of torque) . By adjusting the shape of this map, vehicle manufacturers can dramatically change how a car feels whether it delivers power aggressively or smoothly. if i say in simple way by changing this table you can change throttle response an d torque demand from ECU.
For example, in a sport mode, a small pedal movement might translate to a large torque request, whereas in eco mode, the same pedal movement may request less torque to save fuel.
4. Central Torque Coordination
One of the main advantages of torque based strategies is the ability to coordinate multiple torque requests simultaneously. Torque demands don’t only come from the driver. They also originate from subsystems such as:
- Transmission (for gear shifts),
- Traction control (to prevent wheel slip),
- Cruise control,
- Idle control,
- Catalyst heating and emissions strategies.

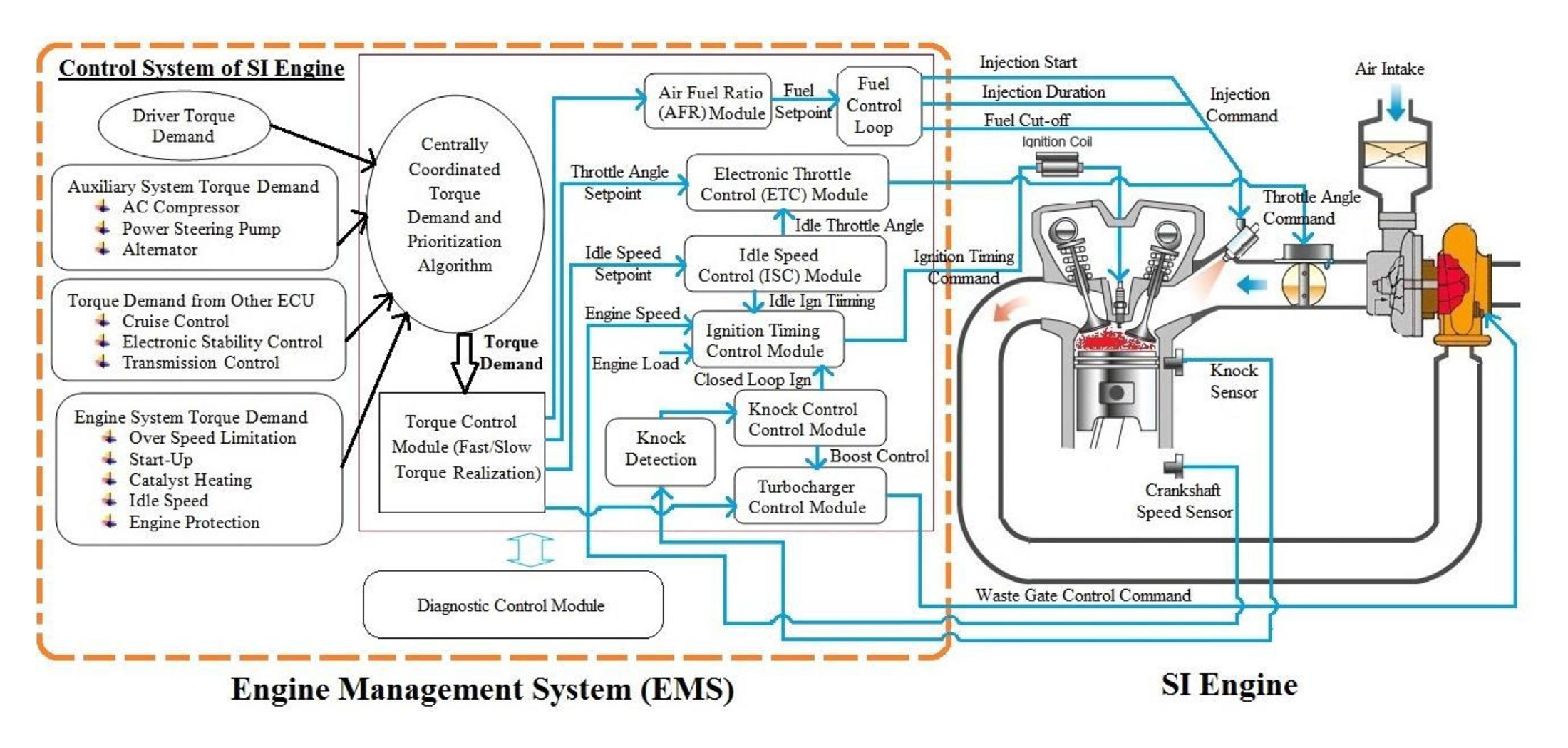

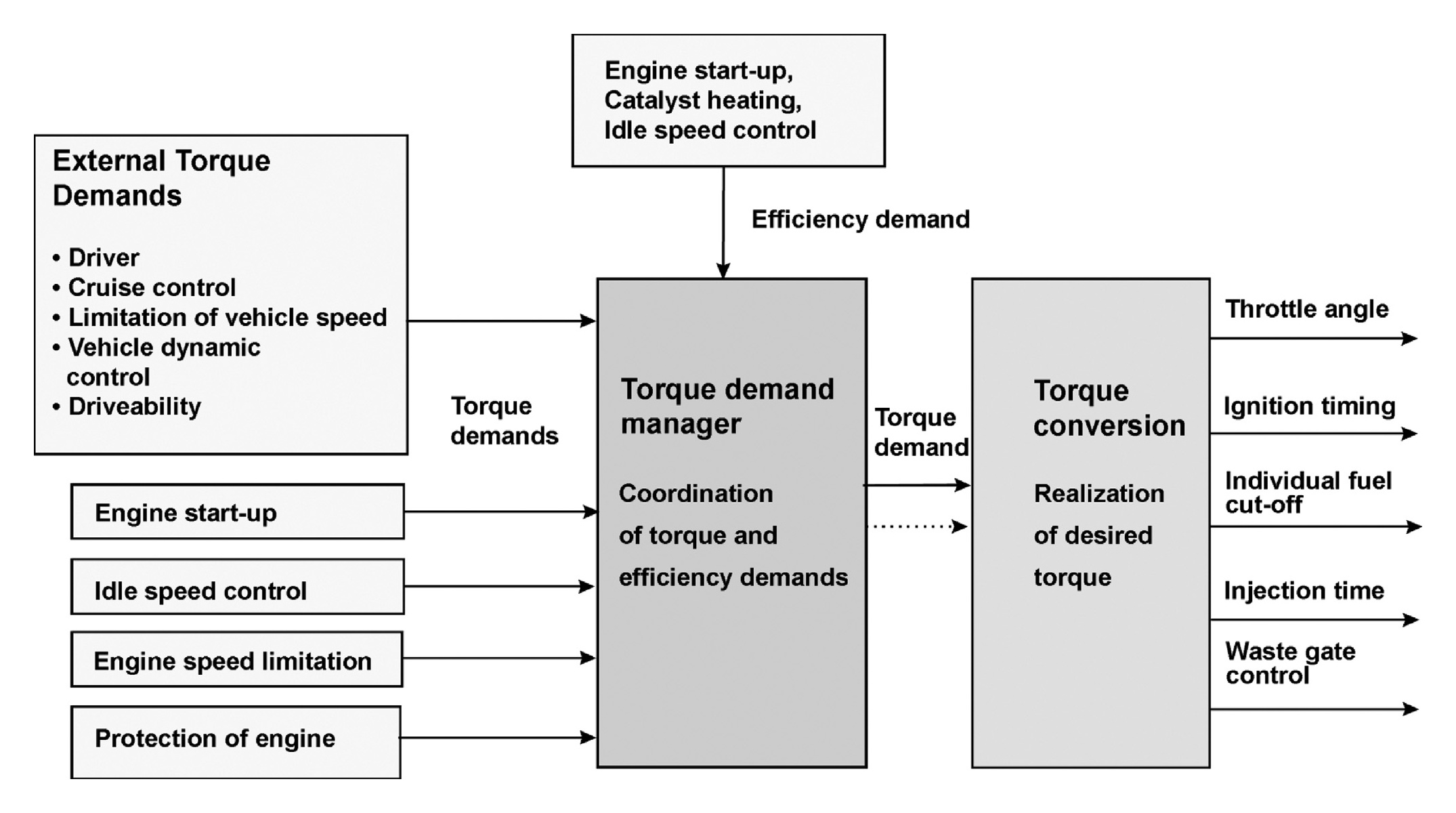

The central torque coordinator receives all these requests, prioritizes them, and generates a single coordinated torque reference. This ensures that conflicting demands are resolved logically. For example, if the driver requests maximum acceleration but the traction control system detects wheel slip, the coordinator will reduce torque accordingly.
5. Torque Estimation Subsystem

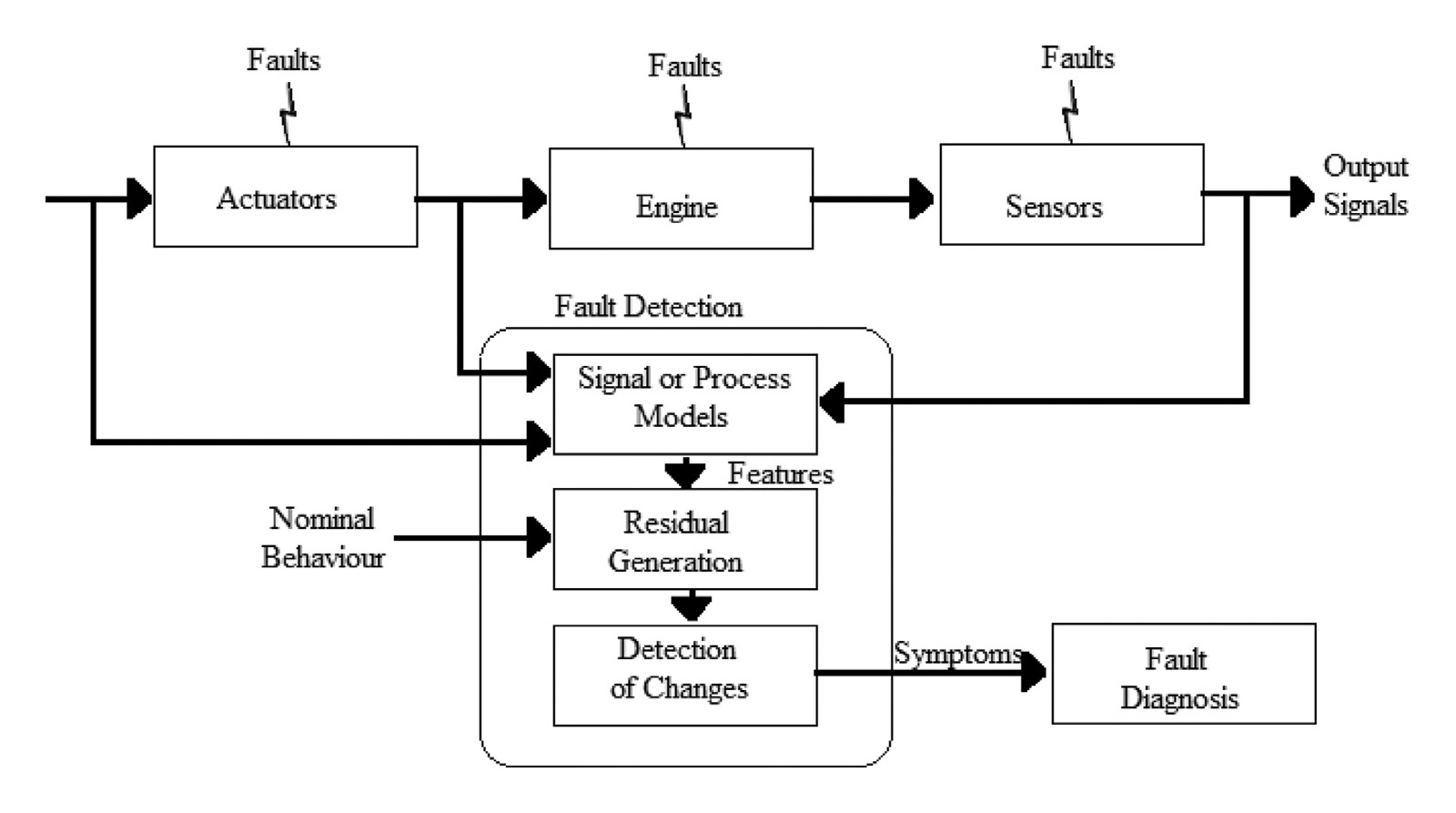

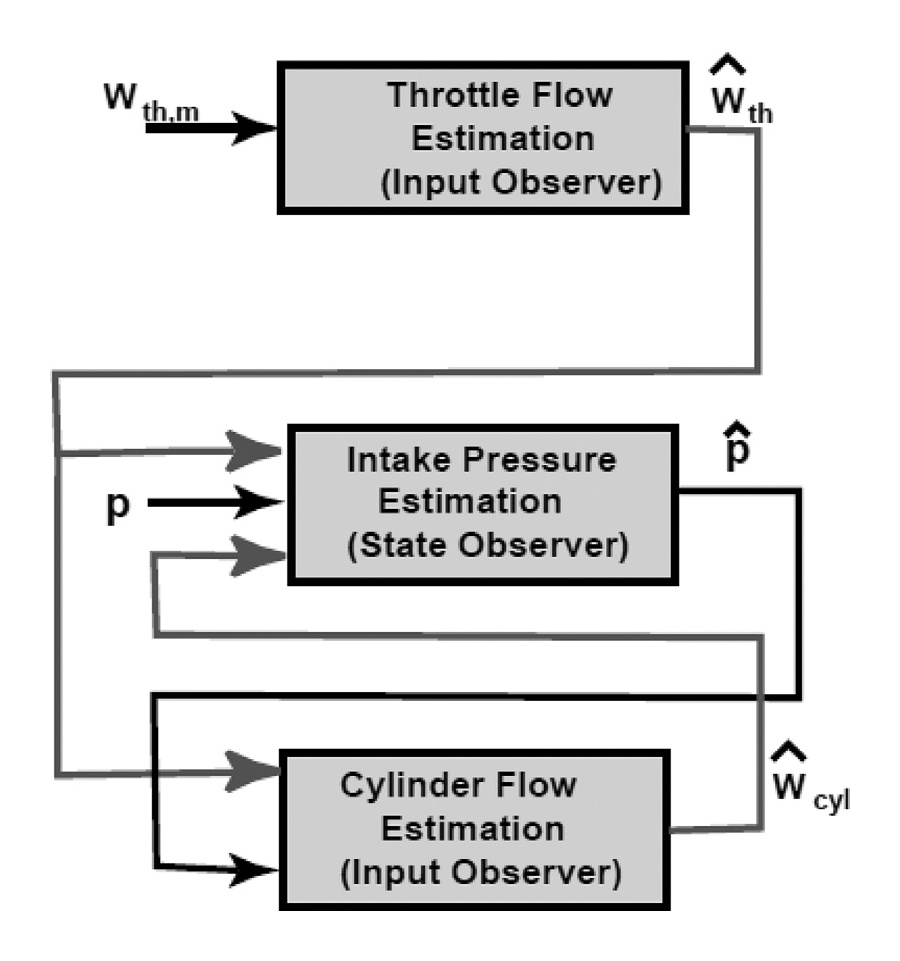

Accurate torque control requires the ECU to know how much torque the engine is producing in real time. However, there are no practical torque sensors installed in production vehicles. Instead, ECUs rely on torque estimation algorithms.
The torque estimation system calculates torque based on:
- Cylinder charge (air mass in the cylinder),
- Air-fuel ratio (lambda),
- Ignition timing,
- Engine friction maps.
By considering these variables, the ECU computes an estimated indicated torque (produced by combustion) and subtracts losses (friction, pumping, accessories) to arrive at net torque. These estimates are continually compared against desired torque to make corrections.

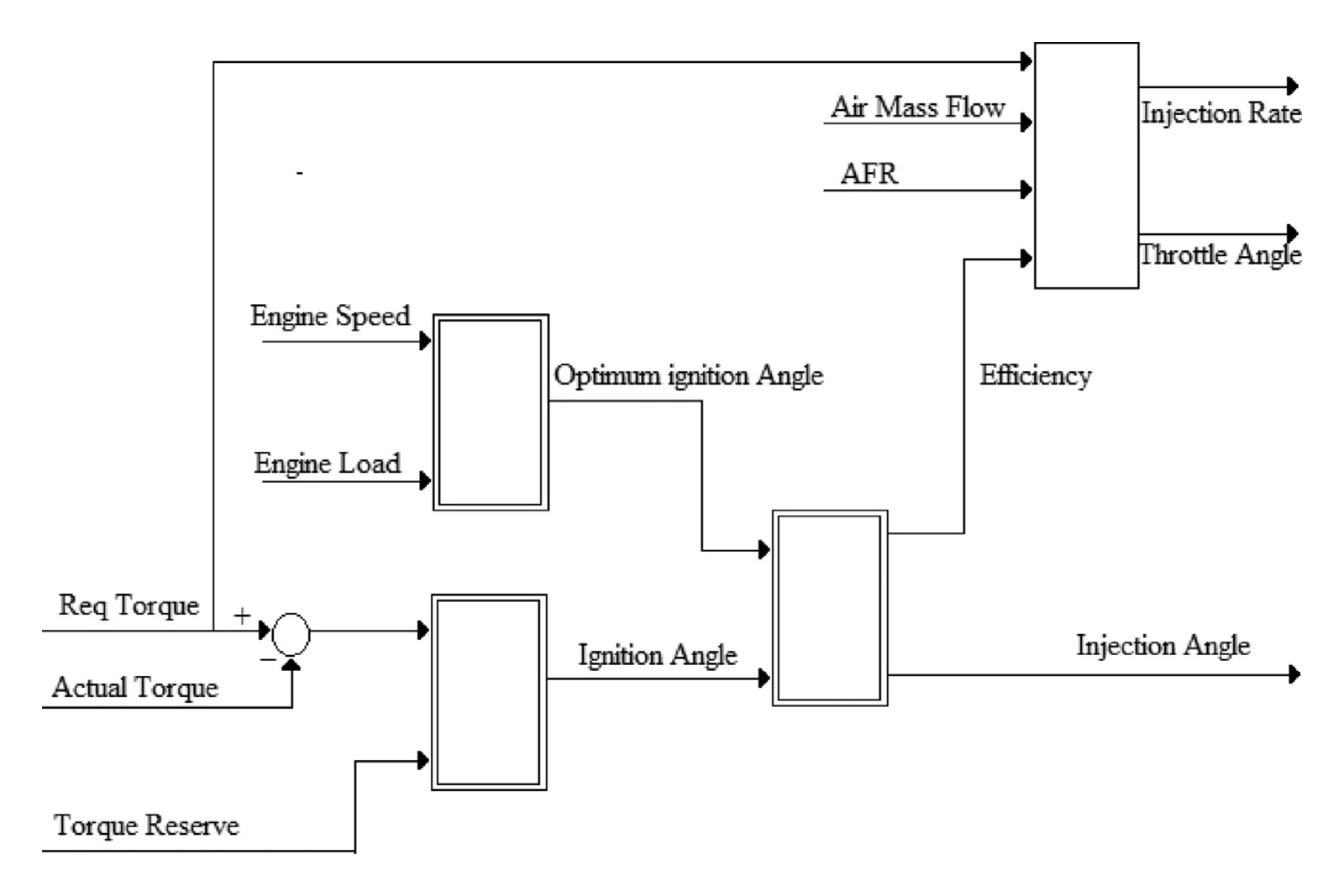

6. Actuator Control in Torque Based ECU
Once the ECU determines the desired torque, it must translate that into specific actuator commands. This involves controlling multiple subsystems simultaneously:
- Throttle position: regulates air intake,
- Fuel injection: determines fuel quantity and injection timing,
- Ignition timing: advances or retards spark for torque shaping,
- Turbocharger/wastegate control: regulates boost pressure.
The torque control block converts the torque request into these actuator settings, ensuring the delivered torque matches the target as closely as possible.

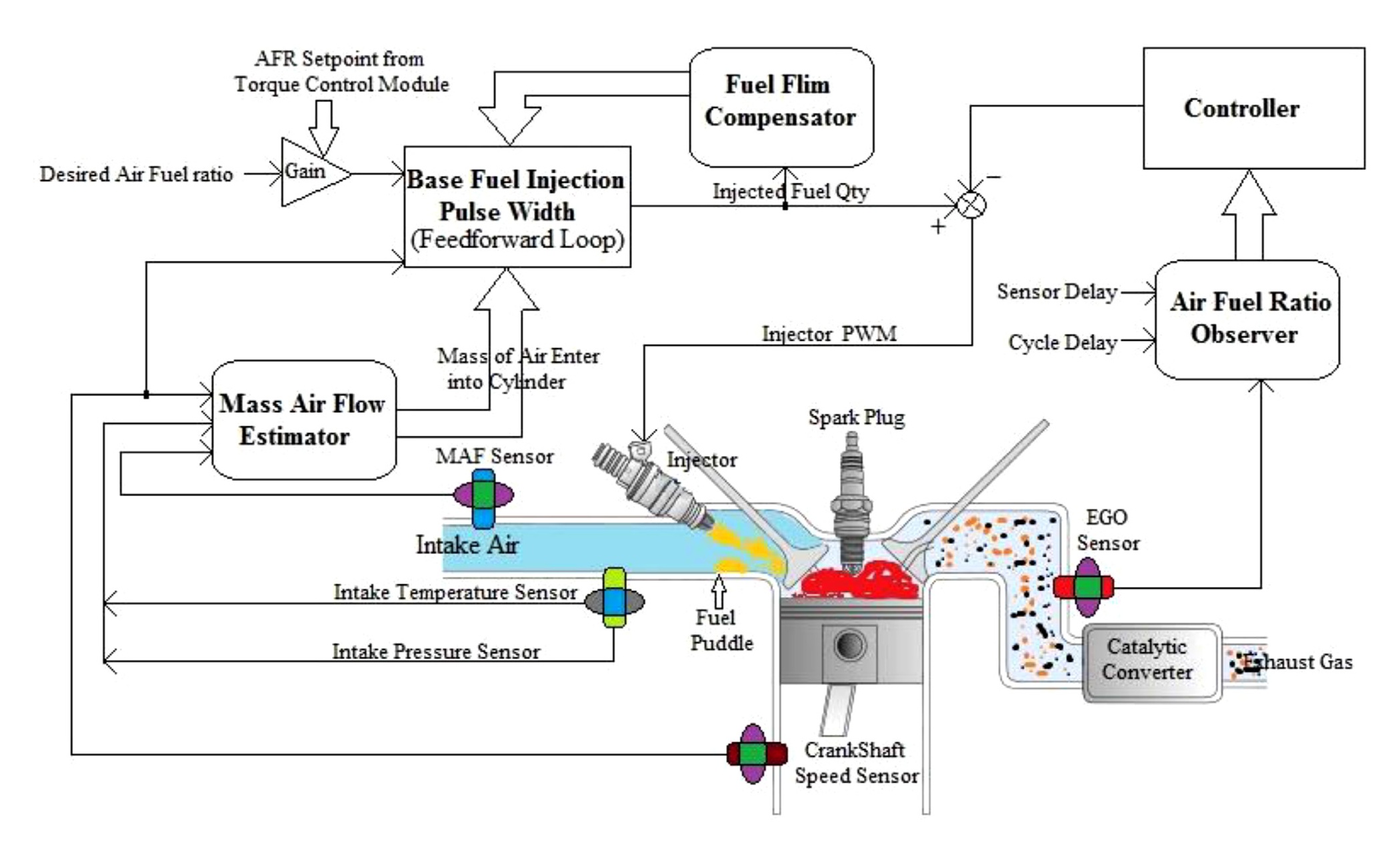

7. Air–Fuel Ratio (AFR) Control in Torque Strategy
The air–fuel ratio (AFR) is critical in both performance and emissions. A stoichiometric AFR (14.7:1 for gasoline) is necessary for optimal operation of the three way catalytic converter.

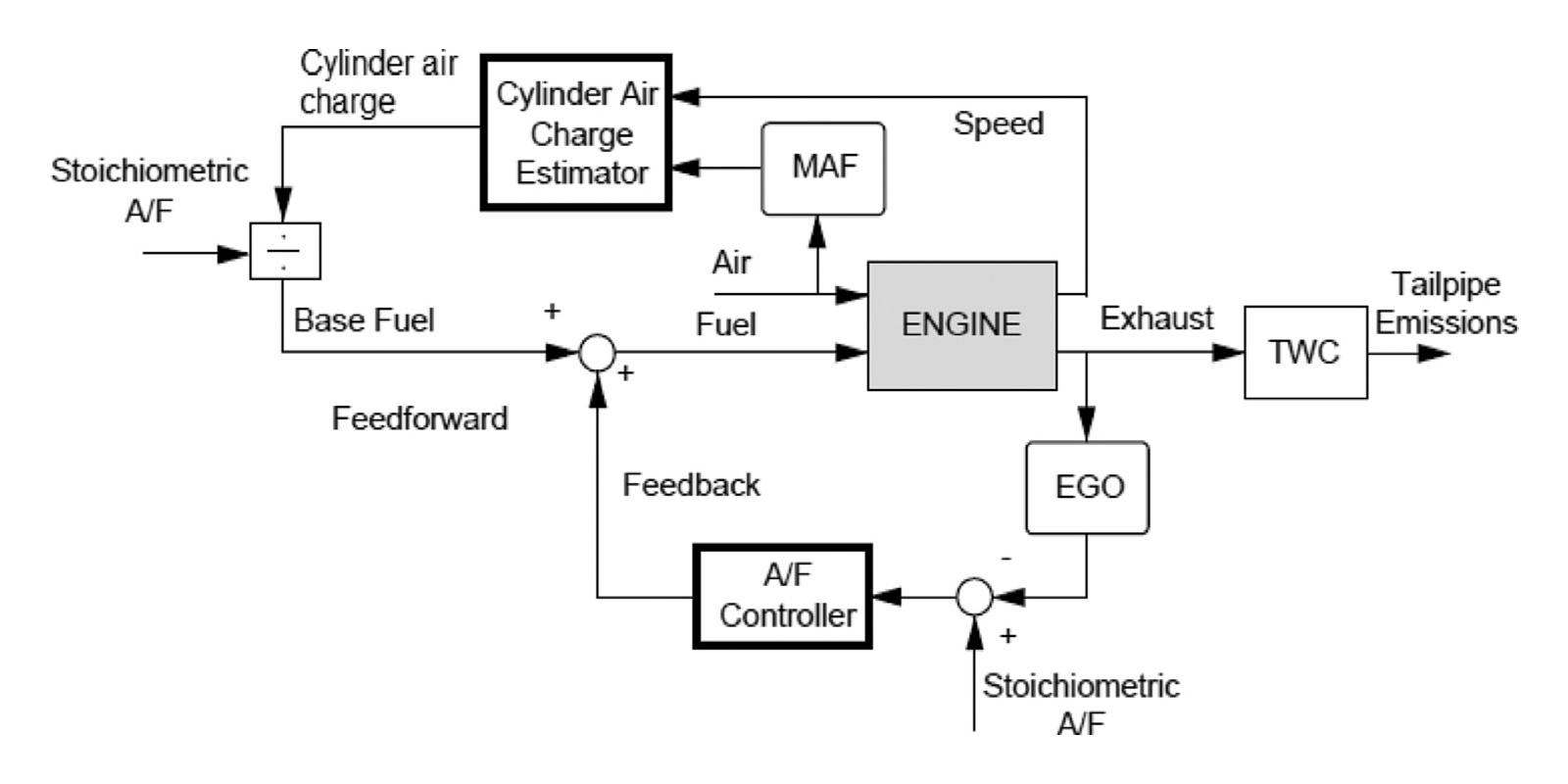

The AFR control module within a torque-based ECU maintains the correct AFR by:
- Estimating incoming air mass (via MAP or MAF sensors),
- Compensating for fuel films in intake manifolds,
- Using AFR observers to monitor deviations,
- Adjusting fuel injection pulse width accordingly.
Simplified Formula:
[AFR = frac{Air\ Mass}{Fuel\ Mass}]

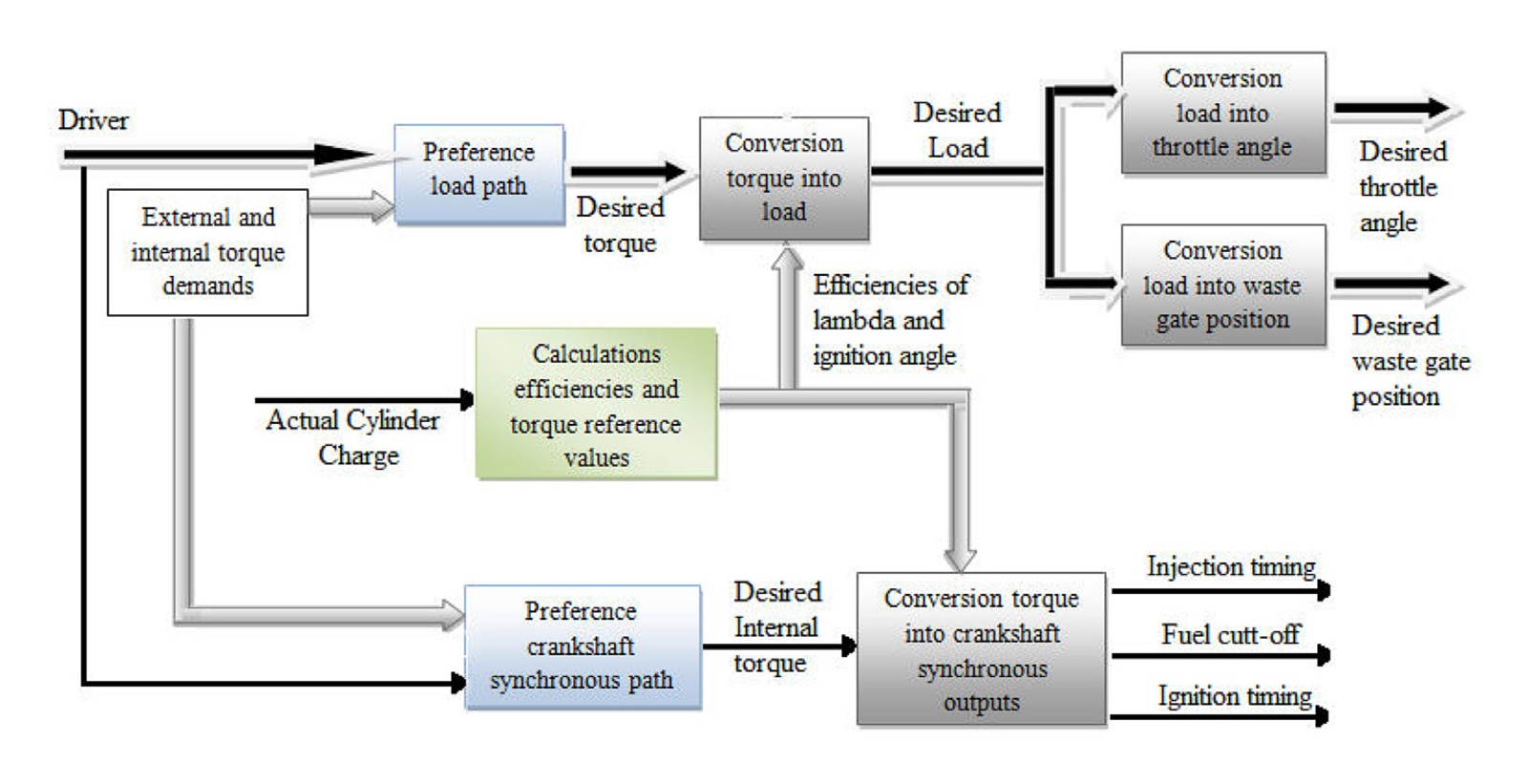

8. Air Mass and Cylinder Charge Control
Torque is fundamentally linked to the mass of air filling in the cylinder. Therefore, torque based ECUs use cylinder charge models to determine how much air is needed to meet a torque request. This involves lookup tables (Volumetric Efficiency maps) calibrated for each engine type.

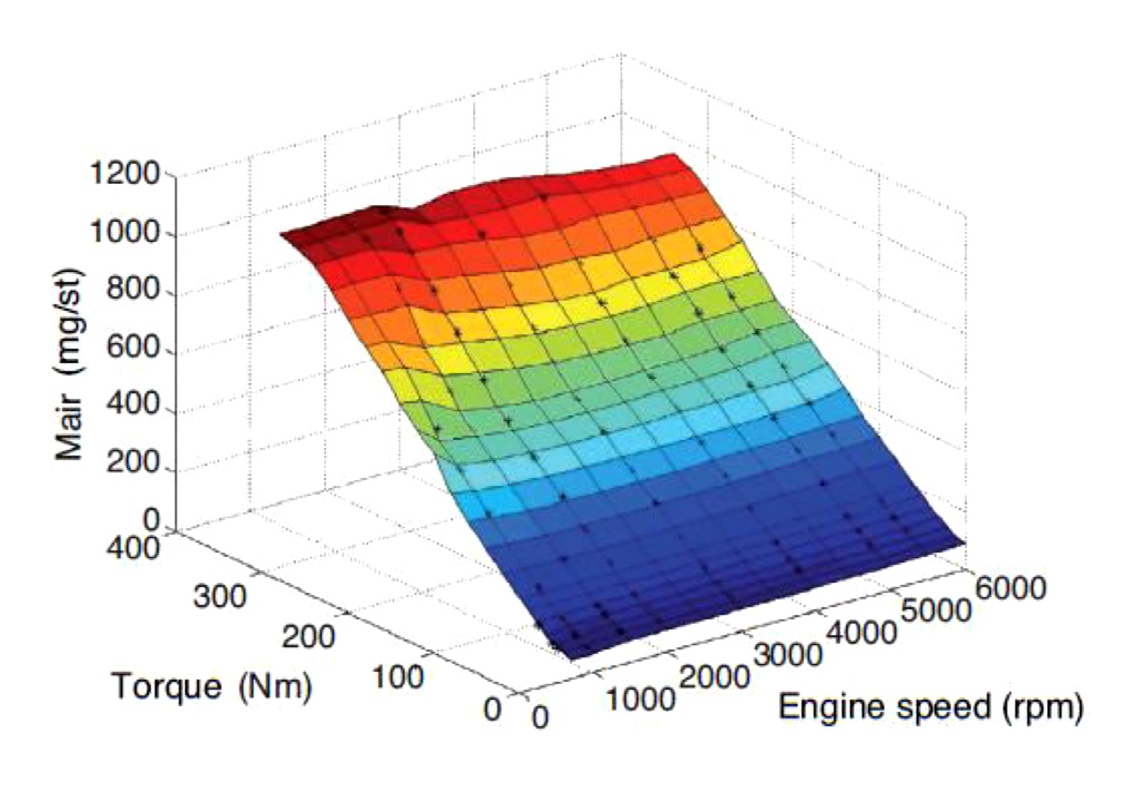

For instance, the Renault F5R engine uses a detailed air mass setpoint map that correlates engine speed with torque demand to determine the exact cylinder charge required.
9. Electronic Throttle Control (ETC) and Drive-by-Wire
The replacement of mechanical throttles with electronic throttle control (ETC) was a critical enabler of torque-based strategies. Also known as drive-by wire, ETC systems use a servo motor to adjust the throttle plate based on ECU commands rather than a direct mechanical linkage to the pedal.
ETC allows the ECU to control airflow independently of pedal position, which is vital for torque coordination. Additionally, ETC integrates idle air control functions, eliminating the need for separate idle actuators.
10. Idle Speed and Torque Compensation

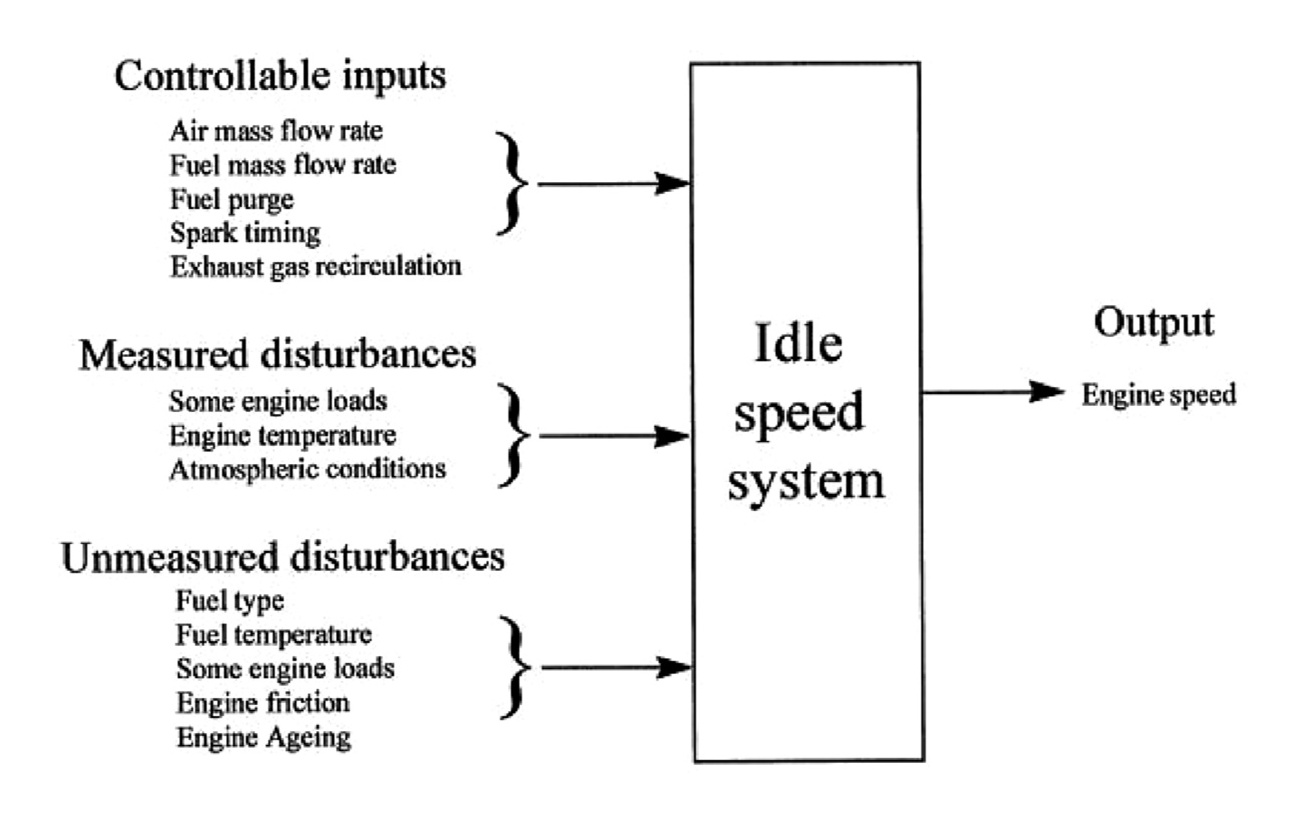

At idle, torque demands are small but highly variable due to accessories (air conditioning, alternator load or other thing like water pump.). The ECU must maintain stable engine speed under these disturbances. This is achieved by:
- Using torque control to adjust spark advance,
- Fine tuning throttle position,
- Compensating for transient loads.
This ensures smooth idling and prevents stalling.
11. Ignition Control in Torque based Structure
Ignition timing plays a critical role in torque delivery. Advancing spark timing increases torque, while retarding it reduces torque. Torque-based ECUs dynamically adjust ignition timing across various modes:
- Cranking (for starting),
- Idle stability,
- Normal operation,
- Overrun fuel cut off.
By integrating ignition control into the torque structure, ECUs can precisely meet torque demands and also prevent knock. keep in ypu mind the knock control one the most important thing in engine durability and reliability.
12. Advantages of Torque-Based ECU Strategy
Torque-based ECU strategies have become the industry standard because they offer multiple advantages:
- Unified coordination between engine and vehicle systems,
- Improved drivability through consistent torque delivery,
- Better fuel economy by optimizing combustion,
- Reduced emissions by ensuring stoichiometric AFR,
- Flexibility for advanced features like traction control, stability systems, and hybrid integration.
Bosch’s ME7 system was one of the first widely adopted torque based ECUs, setting the foundation for modern powertrain management. you can find this model in german cars like BMW, VAG…
13. Challenges and Future Directions
Despite their benefits, torque-based strategies are not without challenges:
- High calibration effort due to reliance on lookup tables,
- Sensitivity to aging, fuel quality, and environmental conditions,
- Complexity of software requiring robust validation,
- Need for advanced real-time models.
Future directions include:
- Model-based control replacing static maps,
- Adaptive algorithms that learn from sensor data,
- Integration with hybrid and electric powertrains for smooth torque blending,
- Development of open-architecture EMS to simplify tuning and calibration.
14. Torque-Based ECU Strategy and ECU Remapping
Torque-based ECUs, while highly advanced, pose a unique challenge when it comes to ECU remapping (tuning). Since torque is the core variable, any performance modification must be carefully recalculated across multiple maps: pedal maps, torque request maps, air charge models, AFR maps, and ignition tables.
Unlike older ECUs where a simple fuel map change could yield results, torque-based remapping requires in-depth knowledge of the system architecture. Every change must maintain consistency between torque requests and actuator control, otherwise drivability issues or engine damage may occur. Therefore, remapping a torque-based ECU is a highly specialized task, requiring expertise, advanced calibration tools, and extensive testing.
15. Schiller Tuning: Global Leader in Torque-Based ECU Tuning
When it comes to torque-based ECU tuning, one of the most recognized specialists worldwide is Schiller Tuning. Known for their precision and technical expertise, Schiller Tuning offers professional ECU remapping services and file services specifically optimized for torque-based control systems.
Their approach ensures that modifications respect the torque structure, maintaining reliability while unlocking performance potential. Whether for increased horsepower, improved throttle response, or customized drivability, Schiller Tuning provides some of the best torque-based ECU remapping services in the world. Automotive professionals and enthusiasts can benefit from their tuning file service, which delivers ready to use, professionally calibrated maps for a wide range of vehicles.
Providing the best tuning file services for torque-based ECUs
16. Conclusion
Torque-based ECU strategies have revolutionized how modern engines are controlled. By making torque the universal control variable, they enable seamless coordination between the engine, transmission, and other vehicle systems. They enhance drivability, fuel efficiency, and emissions compliance, setting the foundation for future integration with hybrid and electric vehicles.
However, their complexity means that any modification, such as ECU remapping, must be carried out by specialists with deep knowledge of torque-based architectures. Companies like Schiller Tuning lead the way in providing expert calibration and tuning services, ensuring that performance upgrades remain safe, reliable, and effective.
In short, torque-based ECU strategies are not just a control philosophy, they represent the future of automotive performance management.
