Best Performance ECU Tuning Files: Everything You Need to Know

 Introduction of  Performance ECU Tuning Files service

A true professional tuner is not just someone who modifies ECU maps for power; they are an engineer, data analyst, and engine enthusiast all in one. Creating a high-performance ECU file requires much more than simply adding fuel or increasing boost—it demands a deep understanding of engine dynamics, years of hands-on experience, and access to precision tools and sensors. Without the right knowledge and equipment, the risk of engine damage increases drastically, and performance gains are often unstable or unsafe.

At Shiller Tuning, we combine science, technology, and experience to deliver ECU files that are both powerful and safe, optimizing every engine parameter to its ideal value under load, boost, and temperature conditions.

Here is is Video That you can Watch Datalogging For ECU Tuning:

Eco Tuning vs. Performance Tuning

There is a fundamental difference between Eco Tuning and Performance Tuning. Eco tuning is primarily focused on fuel economy, often achieved by slightly reducing engine power, optimizing low-load timing, and minimizing fuel consumption at cruising speeds. It can usually be done with minimal sensor data and less complex analysis.

However, Performance Tuning is a different game entirely. It demands a scientific approach, where every parameter—from air-fuel ratio (AFR) and ignition timing to EGT and knock levels—must be precisely calibrated to extract maximum power and torque while preserving engine reliability. A careless or imprecise performance remap can result in engine knock, overheating, or even catastrophic failure. That’s why a professional performance file must be built using advanced tools, real-time data, and deep technical knowledge.

 Key Parameters for Safe and Powerful ECU Files

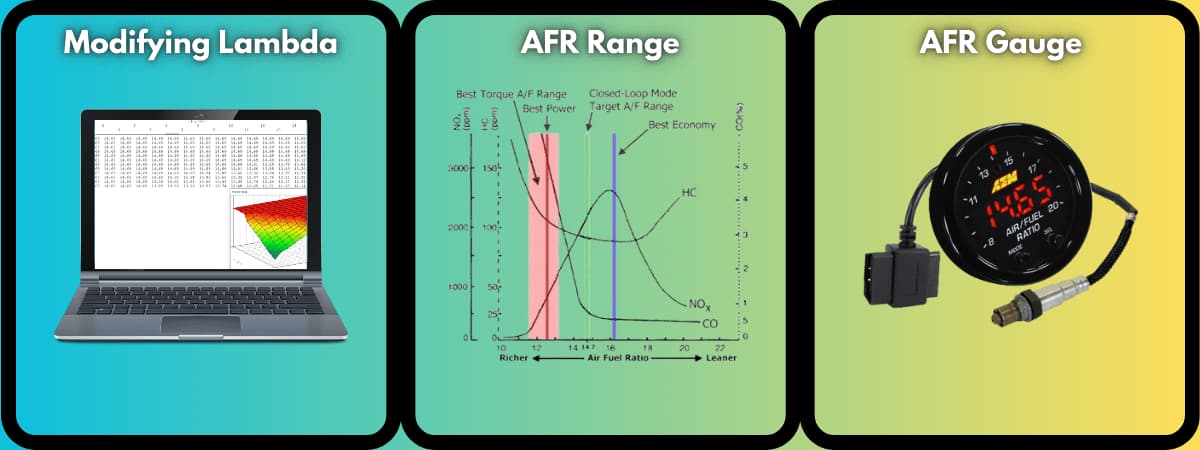

1. AFR (Air-Fuel Ratio)

The Air-Fuel Ratio (AFR) is a measure of how much air is mixed with fuel in an internal combustion engine. For gasoline engines, the stoichiometric AFR is approximately 14.7:1, meaning 14.7 parts of air to 1 part fuel. However, for performance tuning, we typically use richer mixtures to cool the combustion chamber and prevent knock.

• Why it matters: AFR directly affects combustion efficiency, exhaust temperature, power output, and engine safety.
• Safe Range for Power: 12.5:1 to 13.2:1 for naturally aspirated gasoline engines under WOT.
• Devices used: Wideband AFR controllers (AEM, Innovate, PLX).
• Logged by: Standalone gauge, data logger, or ECU software.

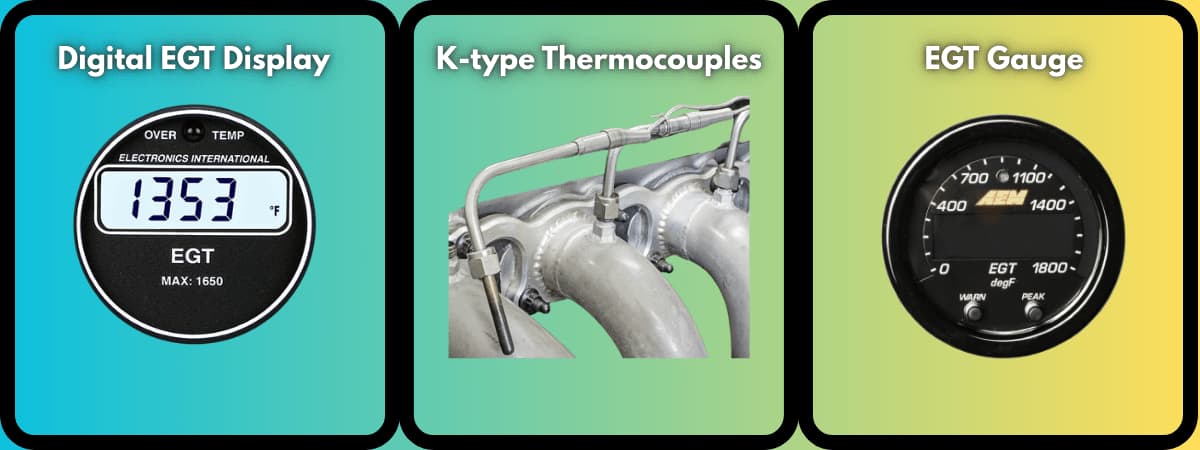

2. EGT (Exhaust Gas Temperature)

Exhaust Gas Temperature reflects the thermal load on the engine’s exhaust system and combustion chamber. EGT rises as more fuel is burned, especially at high loads. Monitoring EGT is critical for turbocharged or highly tuned engines to prevent overheating components like pistons, valves, and the turbo itself.

• Why it matters: High EGT can indicate lean mixtures, late ignition timing, or excessive turbo boost—leading to severe engine damage.
• Safe Range: Under 900°C during load, ideal below 850°C.
• Devices used: K-type thermocouples, EGT gauges (AEM, DEFI, GlowShift).
• Logged by: ECU inputs or external data loggers.

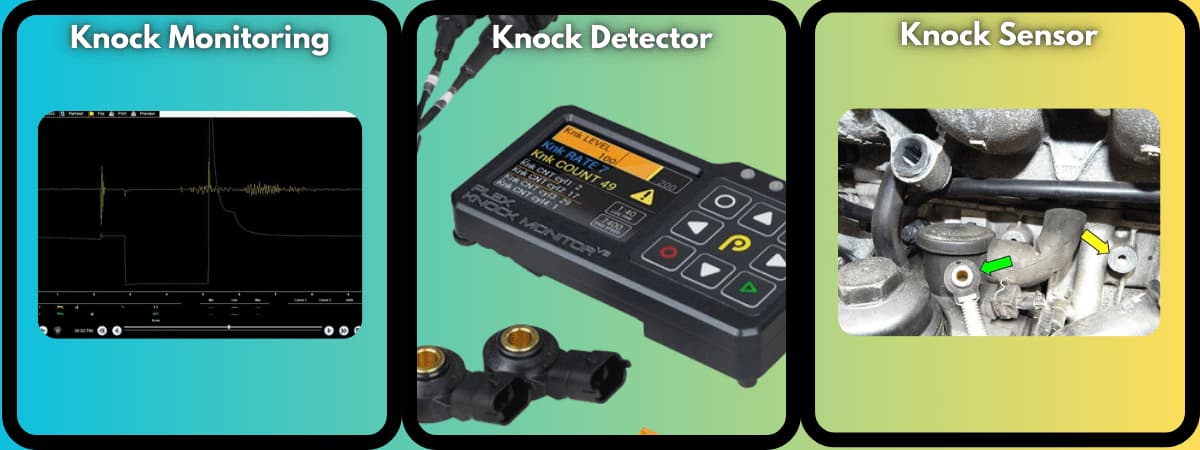

3. Knock Detection

Knock (also known as detonation) is an uncontrolled explosion of the air-fuel mixture in the cylinder, occurring before the flame front reaches it. This can result in shock waves that damage pistons, rods, and bearings.

• Why it matters: Knock is the single biggest killer of tuned engines. Even light knock can significantly reduce engine life.
• Safe Range: Ideally 0 knock in all RPM/load zones.
• Devices used: Plex Knock Monitor V2, Phormula KS-4, OEM knock sensors via ECU.
• Logged by: ECU or external knock monitoring systems with audio and frequency analysis.

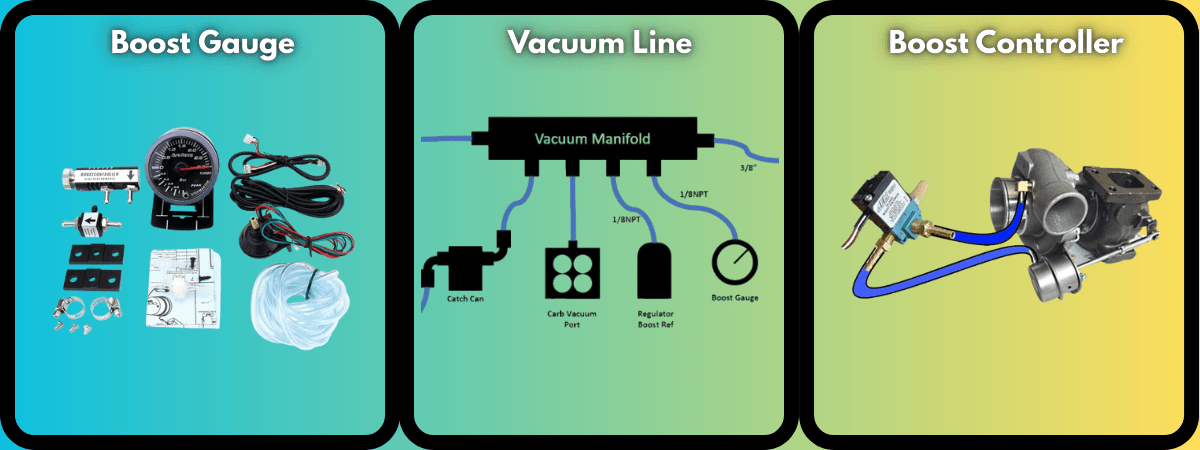

4. Boost Pressure

Boost pressure refers to the amount of positive air pressure delivered to the intake manifold by a turbocharger or supercharger. More air allows more fuel to be burned, creating more power—but it must be carefully managed with fueling and ignition timing to avoid knock or overheating.

• Why it matters: Boost without proper AFR and ignition control is dangerous.
• Safe Range: Engine-specific; for example, 1.2–1.5 bar is typical for a mildly tuned turbo engine.
• Devices used: MAP sensors, mechanical or digital boost gauges.
• Logged by: ECU sensors or data loggers.

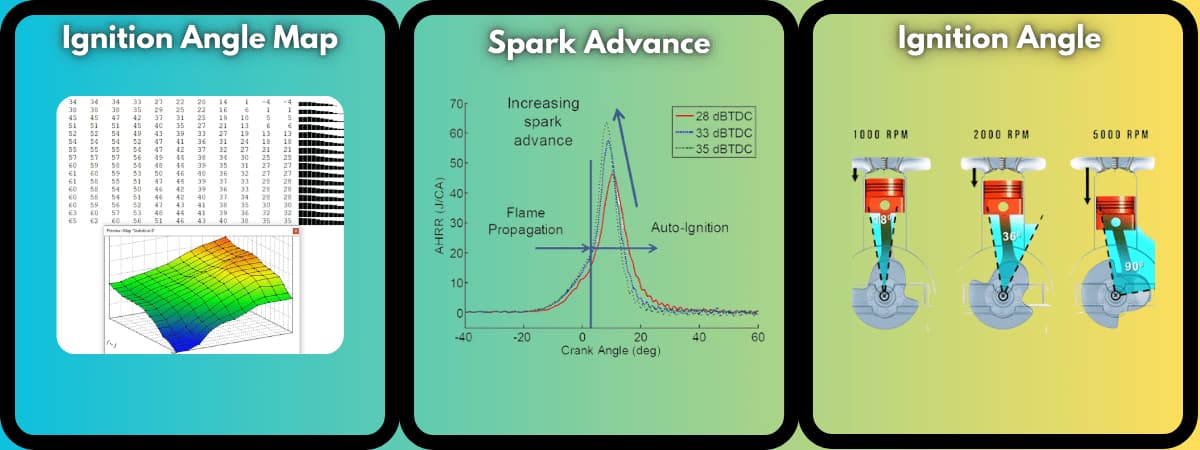

5. Ignition Timing

Ignition timing defines when the spark plug fires relative to the position of the piston. Advancing the timing (firing earlier) increases power,but too much advance causes knock. Retarded timing can cool combustion but may sacrifice performance.

• Why it matters: Getting timing "just right" is key to efficient, knock-free power.
• Tuning Goal: Advance timing as far as safely possible without knock.
• Devices used: ECU tuning software (e.g., HP Tuners, ECUMaster), knock monitors, dyno.
• Logged by: ECU or tuning suite in real-time during dyno runs.

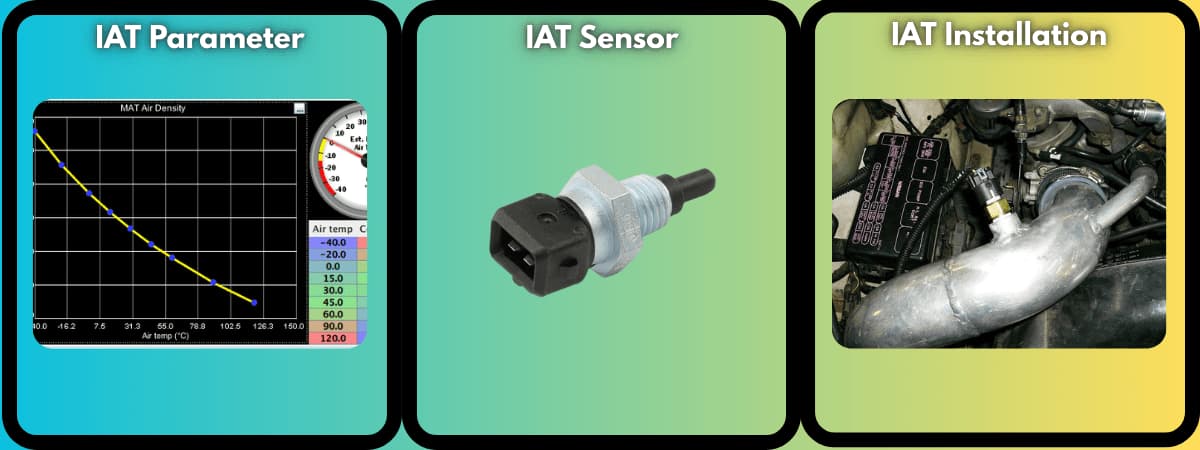

6. Intake Air Temperature (IAT)

IAT measures the temperature of the air entering the engine. Colder air is denser and allows for more power. Hot intake air increases the chance of knock, especially in forced induction engines.

• Why it matters: High IAT reduces performance and increases knock risk.
• Safe Range: Ideally under 50°C under load.
• Devices used: OEM IAT sensors, thermocouples.
• Logged by: ECU or data logger.

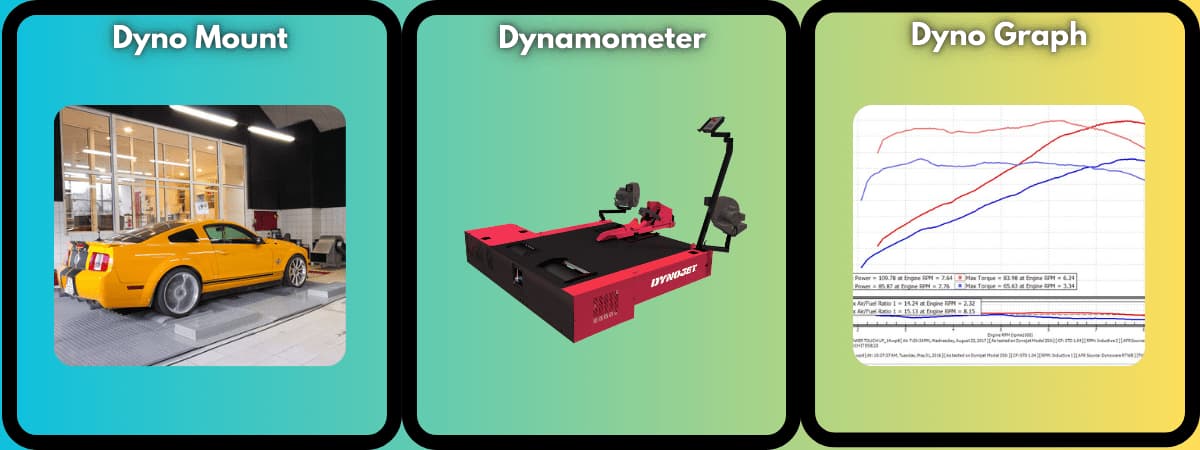

7. Dynamometer (Dyno Testing)

A dynamometer (dyno) is a load-bearing device that measures the actual power and torque output of an engine or vehicle under controlled conditions. It allows tuners to simulate real driving scenarios, capture live data under load, and fine-tune AFR, ignition, boost, and more, in a safe environment.

Here is A Video That you can Watch For Dyno Tuning Of Schiller Tuning :

• Why it matters: Dyno tuning is the only reliable way to test under full-load conditions without risking public roads or guessing.
• Types:
  • Chassis dyno (Dynojet, Mustang)   measures power at wheels.
  • Engine dyno – measures raw engine output on test bench.
• Used for: Power measurement, knock detection, tuning fuel and ignition maps, validating AFR and EGT behavior.
• Integrated With: All tuning systems (ECU software, knock monitors, AFR meters).

Safe Tuning Parameter Table

 Conclusion: Shiller Tuning – Precision Meets Power

At Shiller Tuning, we go beyond “just tuning.” We use professional-grade equipment such as dynos, data loggers, wideband AFR systems, knock analyzers, and real-time logging ECUs to analyze and fine-tune every parameter of your engine.

Our ECU files are developed with precision to ensure:

•  Maximum horsepower and torque
•  Complete safety under all conditions
• Longevity and reliability
•  Smooth throttle and power delivery

With over a decade of experience and the use of cutting-edge tools, our custom remaps are trusted by enthusiasts and professionals alike.

 Want to Tune Like a Pro?

If you want to learn how to remap like a professional, understand the science behind AFR, EGT, knock, and timing, and gain real-world experience with industry tools, you can join our specialized ECU tuning training programs.

Our courses are designed for both beginners and advanced tuners looking to master safe, performance-oriented file creation.
